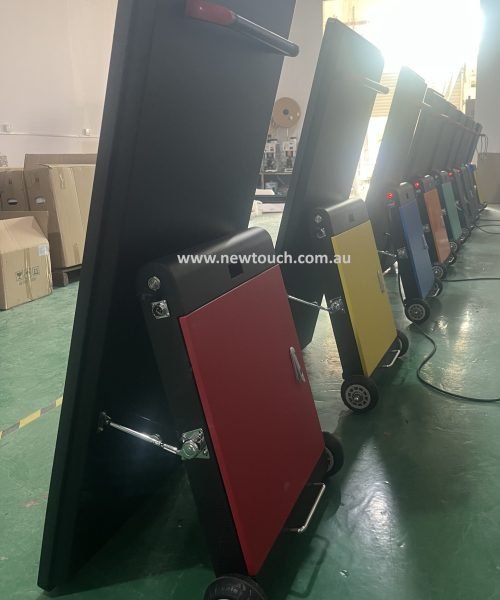

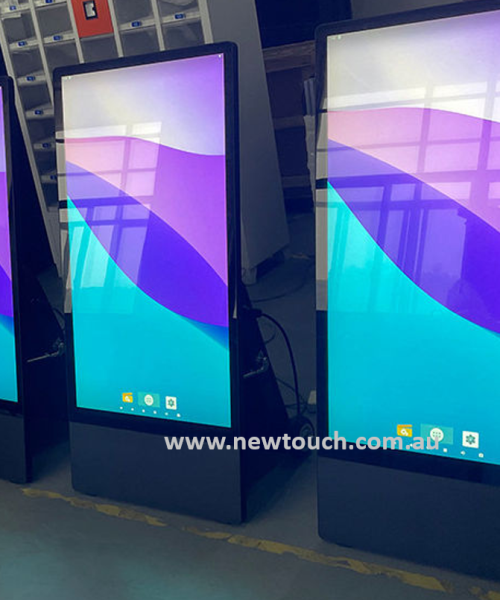

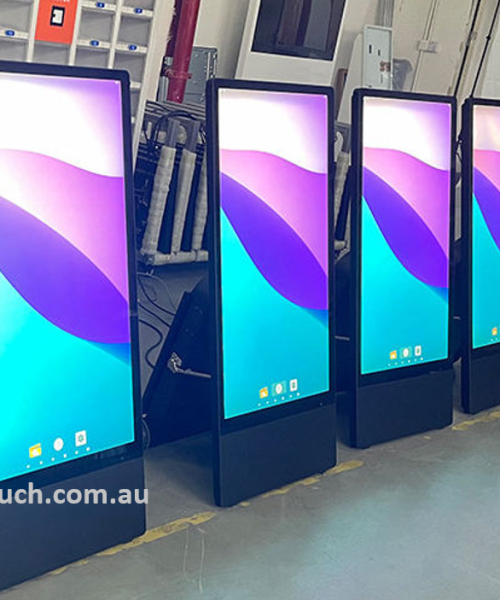

The sleek floor-standing enclosure is designed for public environments, offering a professional appearance that integrates seamlessly into retail stores and commercial spaces.
Water Proof Rate: IP55
Built with durable materials and commercial-grade components, the kiosk is engineered for continuous operation in high-traffic environments.
Built-in 2* casters.
Supports Windows, Android, and Linux platforms, allowing easy integration with existing software and digital signage systems.
Product Applications:
| Specification | Details |
|---|---|
| Panel Type | 43” LED Panel |
| Display Size | 943 × 531 mm (W × H) |
| Aspect Ratio | 16:9 |
| Backlight Type | Patented modular LED backlight + constant current driver |
| Resolution | 1080 × 1920 |
| Color Display | 16.7 million colors |
| Brightness | 1800 cd/m² (clear visibility under direct sunlight) |
| Contrast Ratio | 3500:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 5 ms |
| Video System | PAL / NTSC / SECAM |
| Lifespan | 60,000 hours |
| Specification | Details |
|---|---|
| CPU | Cortex-A7 architecture, 1.2 GHz |
| RAM | 1 GB DDR3 |
| Storage | Supports up to 32GB TF card expansion |
| Decoding Resolution | Up to 1080P |
| Operating System | Android 7.1.1 |
| Network Support | 3G / 4G, Ethernet, WiFi, wireless peripherals |
| Video Formats | Supports 30+ formats including AVI, RM/RMVB, MKV, WMV, MOV, MP4, VOB, FLV, MPEG, TS, 3GP, etc. |
| Image Formats | BMP, JPEG, PNG, GIF |
| USB Ports | 2 × USB Host, 2 × USB Expansion |
| System Upgrade | USB, SD card, and remote upgrade supported |
| Specification | Details |
|---|---|
| Battery Technology | Blade battery (long life, stable performance) |
| Charging Time | 7 hours |
| Working Time | 14 hours |
| Capacity | 50,000 mAh |
| Input Voltage | 24V |
Specification |
Details |
|---|---|
Operating Temperature |
-50°C to 110°C |
Storage Temperature |
-45°C to 80°C |
Operating Humidity |
10% – 90% |
Storage Humidity |
10% – 90% |
Power Input |
AC 100V – 240V |
Power Consumption |
≤ 100W |
Standby Power |
≤ 3W |
Color Options |
Silver, Grey, White, Black, Red |
Material |
Galvanized steel + outdoor-grade coating |
Certifications |
ISO9001, 3C, FCC, UL |
Net Weight |
40 kg |
Gross Weight |
48 kg |

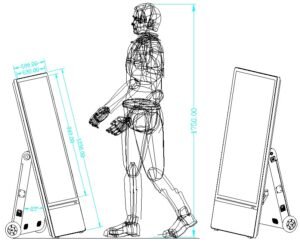

Product Dimensions |
1236 × 148 × 588 mm |
Packaging Dimensions |
1350 × 300 × 700 mm |
